WH00208软管

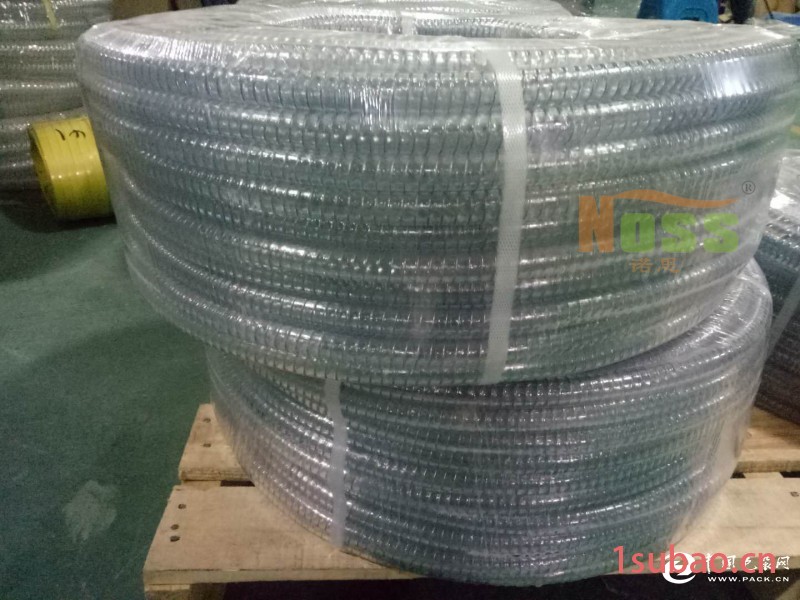

产品介绍WH00208软管
特性及应用：采用无毒材料制造，管身光滑透明如镜。耐磨损，抗化学腐蚀性能好，在真空及高压状态下能保持原形。尤其适合液、气体等物料的高压输送及颗、粉料的抽吸，广泛应用于工厂、建筑、土木工程、码头、油库等领域。
结构：内衬镀锌钢丝加强，内外光滑透明；
温度：-20℃至80℃，材料：优质PVC；
注:其它壁厚,长度,规格都可订做;
尺寸 | 内径 | 壁厚 | 工作压力 | 爆破压力 | 包装 m | 订货号码 |
(mm)土0.3 | (mm)土0.2 | bar | bar |
| ||
1/4" | 6 | 2.5 | 10 | 40 | 100 | WH00208-006-000 |
5/16" | 8 | 2.75 | 10 | 36 | 100 | WH00208-008-000 |
3/8" | 9 | 3 | 9 | 35 | 100 | WH00208-009-000 |
13/32" | 10 | 3 | 8 | 33 | 100 | WH00208-0010-000 |
1/2" | 12 | 3 | 6 | 30 | 100 | WH00208-0012-000 |
5/8" | 15 | 3.5 | 6 | 28 | 100 | WH00208-0015-000 |
3/4" | 19 | 3.5 | 5.5 | 25 | 50 | WH00208-0019-000 |
1" | 25 | 4 | 5 | 20 | 50 | WH00208-0025-000 |
1-1/4" | 32 | 4.5 | 5 | 18 | 40 | WH00208-0032-000 |
1-1/2" | 38 | 5 | 4.5 | 17 | 40 | WH00208-0038-000 |
2" | 50 | 6 | 4 | 15 | 40 | WH00208-0050-000 |
2-1/2" | 63 | 8.5 | 4 | 15 | 20 | WH00208-0064-000 |
3" | 75 | 8.5 | 3.5 | 13 | 20 | WH00208-0075-000 |
3-1/2" | 90 | 9 | 3.5 | 12 | 10 | WH00208-0090-000 |
4" | 100 | 9 | 3.5 | 10 | 10 | WH00208-0100-000 |
5" | 125 | 6.5 | 2 | 8 | 30 | WH00208-0125-000 |
6" | 150 | 7.5 | 2 | 6 | 30 | WH00208-0152-000 |
